Beacons and SART's

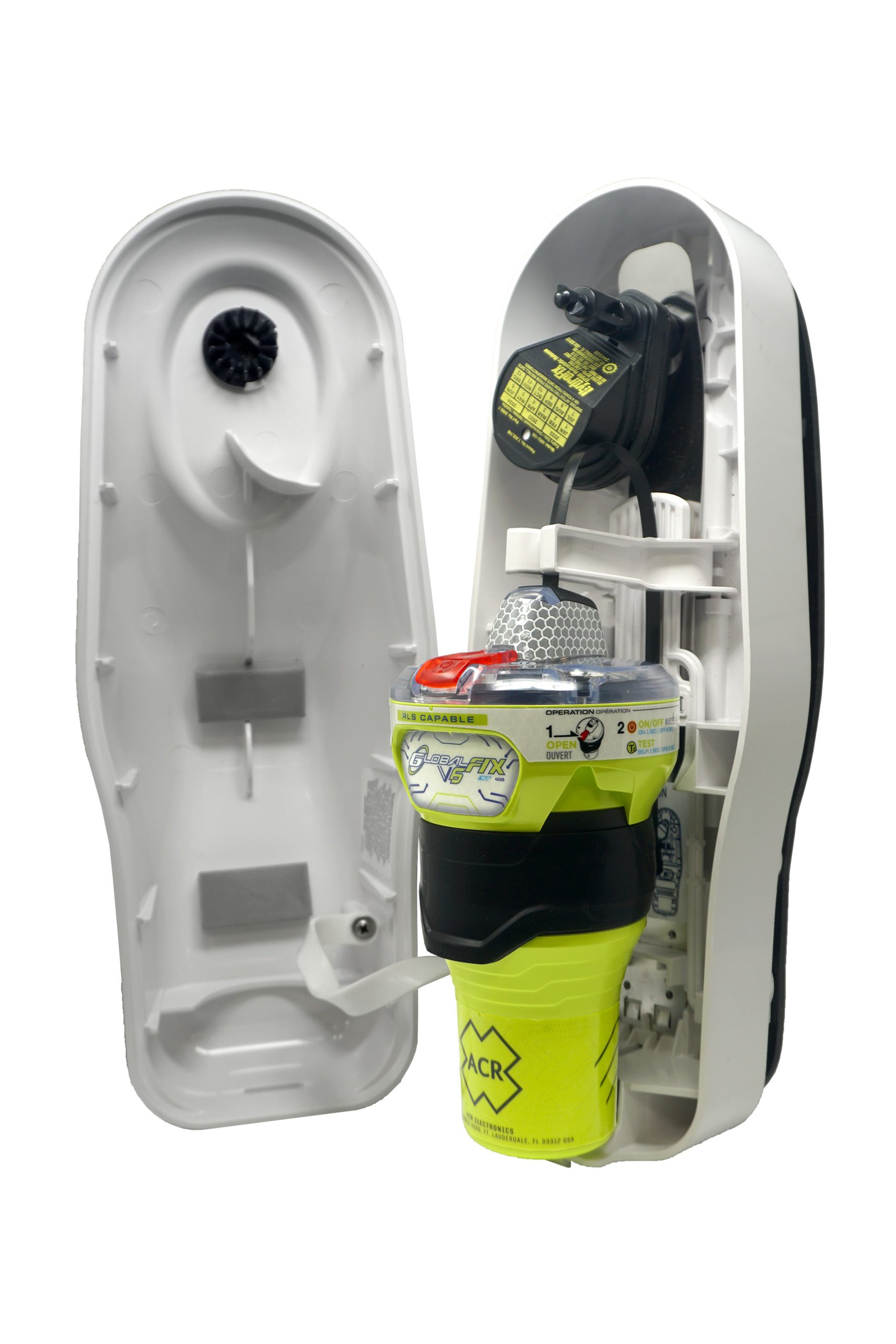

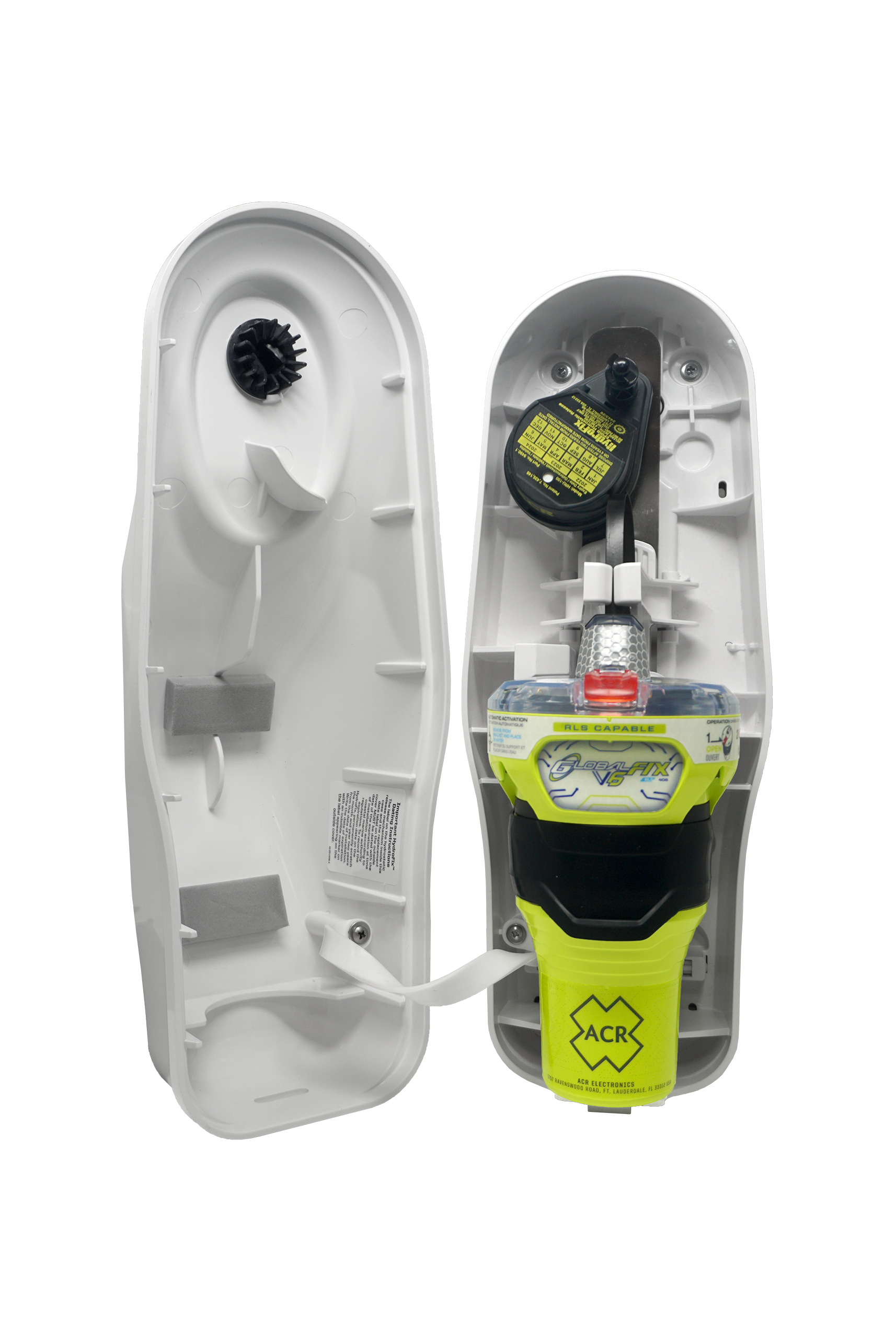

The new ACR GlobalFix V6 EPIRB is a versatile Emergency Position-Indicating Radio Beacon suitable for use on both recreational and commercial vessels. This is the Category I - Hydrostatic release (auto) model
High tech features like Return Link Service (RLS) reassure users by confirming that the beacon has successfully sent the distress message and that this message has been received. ACR’s new Near Field Communication (NFC) allows the beacon to connect to a smartphone for quick diagnostics that demonstrate the battery is charged and the EPIRB is functioning properly. The GlobalFix V6 is an ideal safety solution for all types of vessels and activities including coastal cruising, offshore passage making, or while working or fishing in any ocean.
ACR, the world leader in electronic marine safety devices, introduces a new high tech EPIRB (Emergency Positioning Radio Beacon). The new ACR GlobalFix V6 EPIRB uses 406 MHz satellite connectivity to transmit emergency signals to the global Cospas Sarsat satellite rescue system. Return Link Service (RLS) technology provides visual confirmation to the user that their distress message has been received. A 121.5 MHz homing signal helps rescuers find the activated beacon when they are on scene. Visible and infrared strobe lights aid in target identification at night or when visibility is limited speeding rescue and recovery. A new feature called Near Field Communication (NFC) lets users monitor their EPIRB’s functions using a smartphone App. ACR is dedicated to marine safety and the new GlobalFix V6 EPIRB provides sophisticated rescue technology in a durable and reliable device that works globally.
The ACR GlobalFix V6 EPIRB accurately derives its position globally through the GNSS (GPS, Galileo, Glonass) positioning networks. Triggering the device produces a digital mayday using a 406 MHz distress transmission that relays the GPS EPIRB (GPIRB) position, accurate to within 100 meters, to the worldwide Cospas Sarsat search and rescue satellite network. Position information and vessel identification are then relayed by the satellites to ground stations which ultimately helps decide the scope of rescue operation to be launched. Once the EPIRB is activated, a 121.5 MHz signal is transmitted in addition to the higher frequency satellite signal. This 121.5 MHz homing signal aids rescuers in finding the device when they arrive upon the rescue scene, particularly important if the beacon has drifted from its original location. The GlobalFix V6 EPIRB also emits both a visual and infrared strobe to help rescuers pinpoint the beacon and speed rescue operations.
Using ACR’s free smartphone app and NFC (Near Field Communication) technology users can easily access EPIRB diagnostics. Placing a smartphone adjacent to the GlobalFix V6 EPIRB opens the ACR Product App which shows EPIRB data. The app shows the current battery life of the beacon, the number of GNSS and self-tests completed, and the amount of time the EPIRB has been activated. Users can see detailed information on each self-test and GNSS test performed by the device. GNSS tests include a map view demonstrating where previous tests were performed, the date and time of the tests, how long it took the EPIRB to get a fix on the GNSS coordinates, the number of satellites used to obtain that fix, and the fix’s accuracy. NFC allows users to routinely check the status of all EPIRB functions to ensure it is working properly and ready to go in case of an emergency.
Return Link Service indicates to the user that an EPIRB’s rescue transmission has been received. The RLS signal is sent back through the Galileo satellite network confirming that the digital mayday including precise beacon location and identifiers have been delivered. An easy to see flashing blue light indicates the EPIRB’s successful reception of the Return Link message through the Galileo satellite network. Those in distress who have triggered the beacon and received the RLS confirmation know that rescuers will be made aware of the EPIRB activation and location and that rescue operations will be launched.
ACR is a globally recognised leader in marine electronic rescue devices and other life-saving products. They build quality rescue equipment solutions like the new ACR GlobalFix V6 EPIRB that are suitable for all types and sizes of vessels in both the recreational and commercial sectors. Long life Lithium batteries, global 406 MHz satellite transmission, a 121.5 MHz homing signal, visual and infrared strobes, and Return Link Service that tells users their rescue signal has been received are all packed into a durable waterproof beacon. Near Field Communication and the free ACR App allow users to check the EPIRB status for added reliability. Mariners coastal cruising, working offshore or crossing oceans will appreciate the advanced features of the GlobalFix V6 EPIRB.
| Name | GlobalFix V6 |
| Product Description | EPIRB with RLS and NFC |
| Model Number | BEGF2853 |
| Output Power (406/121.5) | 406.040 MHz, 5W (nominal) / 121.5 MHz, 50mW (nominal) |
| RLS | Return Link Service (RLS) confirmation direct to beacon |
| NFC / Mobile App | Near Field Communication (NFC) and Mobile App Included |
| Strobe | White & Infrared |
| Size (antenna up) – Beacon Only | 18.5” x 4.3” x 4.36”
470 mm x 109 mm x 111 mm) |
| Weight – Beacon Only | 1.78 lbs (810 G) |
| Battery | Lithium battery, Li/FeS2 |
| Battery Replacement | 10-year replaceable battery (replace 10 years after the date of manufacture or after activation) |
| Temperature Range (Class 2) | Storage: -22°F to +158°F (-30°C to +70°C)
Operating: -4°F to +131°F (-20°C to +55°C) |
| GPS | 72 Channel Multi-constellation receiver (GPS, Galileo, & Glonass GNSS) |
| Activation | Out of bracket and wet, or manually in or out of the bracket (Class 3 – manual activation only) |
| Waterproof | 33 ft (10 m) for 5 min. |
| Buoyant | Yes |
| Operational Life | 48 hours minimum @ -4°F (-20°C) |
| Deployment | Category I – Hydrostatic Release (auto deploy) |
| Warranty | 5 years |
| Accessories | EPIRB Mounting Hardware (Included – P/N 9657)
Cat I Bracket (P/N 2832) Cat II Bracket (P/N 9656) HRU (P/N 9490.1) |
| Approvals | Cospas-Sarsat, FCC, RED, Canada ISED |
